High Resolution
0.1 inHgV increments
HIGHER STANDARDS. TIGHTER RESULTS.
Precision Vacuum Monitoring for Critical Composites.
Detect smaller vacuum changes before resin flows. Improve process confidence, reduce avoidable scrap and verify vacuum integrity with high-resolution digital measurement.
0.1 inHgV
display resolution
±0.075 inHg
stated accuracy
29.6 inHgV
full vacuum reference
Large, bright LED display
1/4 in NPT connection
Precision Focused
Designed to expose subtle changes
High Visibility
Bright LED readout
Rechargeable
Built for production use
Rugged Housing
Production-floor ready
VACUUM INTEGRITY
A small leak can become a very expensive defect.
Resin infusion and vacuum-bagged composite processes depend on a stable, controlled vacuum. Small leaks can be difficult to detect on an analog dial, especially when the pressure change is gradual.
The DVS-G gives operators a clear digital reading so subtle vacuum movement is easier to identify during bag checks, drop tests and process verification.
Example vacuum drift
29.6
→
29.5
→
29.4
inHgV
A slow decline after isolation can indicate that the system is not holding vacuum as expected.
Vacuum source
DVS-G
COMPOSITE LAYUP
LIVE VACUUM
29.6
inHgV
Pull Vacuum
Bring the bag or process envelope to the target vacuum level.
Stabilize
Allow the system and materials to settle before evaluation.
Isolate
Separate the vacuum source when performing a drop test.
Verify
Watch for small changes before resin is introduced.
BUILT FOR DEMANDING APPLICATIONS
Precision vacuum monitoring across advanced composite manufacturing.
DVS instruments are designed for environments where vacuum integrity, repeatability and process verification directly affect part quality.
01
AEROSPACE
Aerospace Composite Manufacturing
High-value composite structures where small process variations can become costly defects.
- Aircraft structures and subassemblies
- Control surfaces and fairings
- Composite tooling and layup verification
02
DEFENSE
Defense & Mission-Critical Programs
Production environments that place a premium on documented process control, traceability and consistent results.
- UAV and unmanned system structures
- Radomes and specialized composite assemblies
- Defense-oriented tooling and production fixtures
03
SPACE
Space & Lightweight Structures
Composite manufacturing where weight, consistency and quality documentation carry exceptional importance.
- Satellite structural components
- Launch-system composite assemblies
- Lightweight high-performance structures
04
ADVANCED COMPOSITES
Resin Infusion & Vacuum Bagging
Flexible vacuum monitoring for composite production, development, troubleshooting and process validation.
- Resin infusion and vacuum bagging
- Marine and automotive composites
- Research, prototyping and tooling
APPLICATION NOTE
References to aerospace, defense or space applications describe the types of manufacturing environments in which DVS products may be used and do not imply certification or approval for any specific platform or program unless separately documented.
SELECT ORGANIZATIONS SERVED
Experience across demanding aerospace and composite environments.
DVS products have been supplied to organizations working in aerospace, defense, engineering research and advanced composite manufacturing.
Company and organization names and marks are shown for factual identification only and do not imply endorsement, certification, approval or affiliation.
DVS-G
DIGITAL VACUUM GAUGE
0.1
inHgV Resolution
±0.075
inHg Accuracy
29.6
inHgV Full Scale

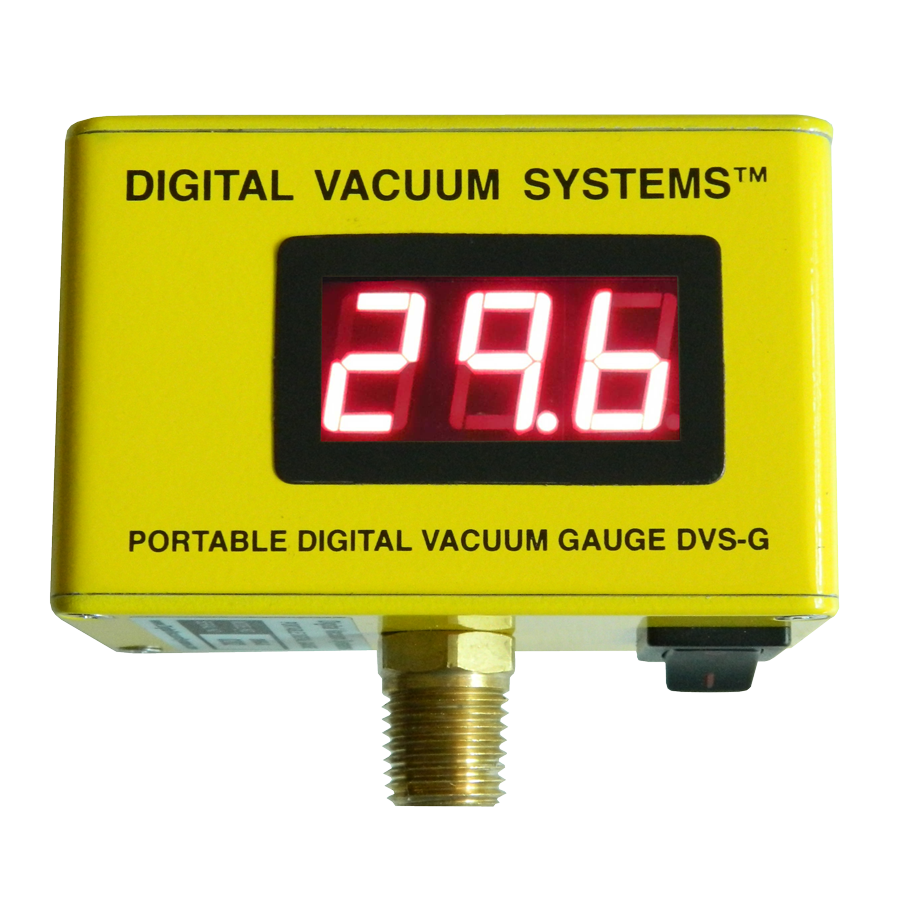

PORTABLE DIGITAL VACUUM GAUGE
See the vacuum. Not the estimate.
The DVS-G gives composite manufacturing teams a clear, high-resolution digital view of vacuum level so subtle changes are easier to detect during bag checks, vacuum drop tests and production verification.
DESIGNED FOR PRODUCTION
Built for resin infusion, vacuum bagging and other composite manufacturing environments where process integrity directly affects finished-part quality.
DVS-G TECHNICAL OVERVIEW
PRODUCTION READY
- Measurement Range
- 0.0 to 29.6 inHgV
- Display Resolution
- 0.1 inHgV
- Stated Accuracy
- ±0.075 inHg
- Process Connection
- 1/4 in NPT
- Display
- High-Visibility LED
- Power
- Rechargeable
Easier Leak Detection
High-resolution digital readings make small vacuum changes easier to identify than estimating between analog dial markings.
Built for the Shop Floor
Rugged construction, bright display and rechargeable operation support everyday production use.
Useful Beyond the Bag
Sensitive enough to help evaluate vacuum lines, fittings, gauges and other parts of the vacuum system.
QUALITY YOU CAN TRACE
From critical component to finished gauge.
For aerospace, defense and advanced composite manufacturing, quality documentation matters. Each DVS-G can be supported by a traceable record linking critical components, final assembly verification and completed functional testing.
Serialized Components
Critical installed components can be linked
to supplier serial numbers.
Final Assembly Verification
The completed gauge is inspected and tested
before release.
Documented QA Record
Testing and traceability information can
accompany the finished unit.
EXAMPLE DVS-G TRACEABILITY RECORD
VERIFIED
VACUUM SENSOR ASSEMBLY
Serial No. 278
Supplier component received with supporting conformance documentation.
INSTALLED IN
FINISHED DVS-G
Serial No. 278
Critical component serial number recorded during final assembly.
FINAL TEST
FINAL FUNCTIONAL TEST
Vacuum Hold Verification
Each assembled gauge is functionally tested to verify that it maintains vacuum for a defined test duration prior to final release.
RELEASED
QUALITY DOCUMENTATION
Certificate of Conformance
Final gauge record can include serial-number traceability and QA sign-off.
VERIFIED AND TESTED BY
DATE
TECHNICAL RESOURCES
Practical guidance for vacuum-based composite manufacturing.
Technical articles and process guidance focused on vacuum integrity, measurement, verification and quality documentation.
PROCESS GUIDES
PG
Vacuum Process Verification
Practical guidance for evaluating vacuum integrity before resin introduction and during production setup.
TECHNICAL NOTES
TN
Understanding Vacuum Measurement
Clear explanations of digital vacuum measurement and the specifications that matter in composite manufacturing.
QUALITY & DOCUMENTATION
QA
Traceability & Verification
Documentation topics for manufacturers that require component traceability, functional verification and receiving records.
ABOUT DIGITAL VACUUM SYSTEMS
Built to make small vacuum changes easier to see.
Digital Vacuum Systems was created around a simple manufacturing problem: small vacuum leaks can be difficult to detect, yet they can have a major impact on composite part quality.
The DVS-G was developed to give resin infusion and vacuum-bagging teams a clearer, more precise view of vacuum behavior during setup, verification and production.
Our focus is practical instrumentation for demanding manufacturing environments, with an emphasis on precision, traceability and straightforward operation.
WHY DVS
DVS-G
Precision Where It Matters
High-resolution digital measurement helps operators identify subtle vacuum changes that may be difficult to see on an analog dial.
Designed Around the Process
The DVS-G is purpose-built for vacuum bagging, resin infusion and composite manufacturing workflows.
Quality You Can Document
Component traceability, final functional verification and serial-number-based records support quality-focused customers.
Practical by Design
Bright display, rechargeable operation and rugged construction make the gauge easy to use on the production floor.
PRECISION UNDER PRESSURE
Protect Every Part.
Perfect Every Process.
Improve vacuum verification with high-resolution digital monitoring built for demanding composite manufacturing environments.
Request a Quote
Talk with us about your application and documentation requirements.
REQUEST A QUOTE
Tell us what your process requires.
Whether you need a few gauges for a production cell or a larger quantity for a manufacturing program, tell us about the application and any documentation requirements.
✓
Direct Technical Support
Questions are reviewed by people familiar with the DVS-G and composite vacuum applications.
✓
Quality Documentation
Certificate of Conformance and traceability requirements can be discussed as part of your order.
✓
Serialized Product Records
DVS-G units can be supported by serial-number-based assembly and verification records.
